Separation

Separation

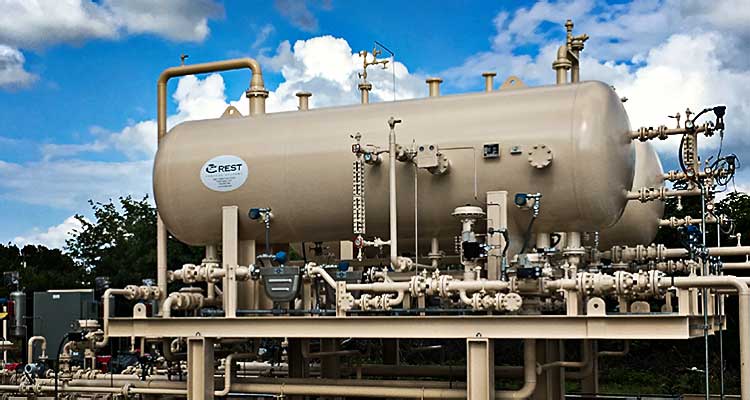

Horizontal Separator for Permian Basin Area West Texas operations


HP WestTx Horiz 60x15x720#

Horizontal Separators South Texas Eagleford Area operations

IMG_2668 IMG_2669

Vertical and Horizontal Separators

vertical-separators

Horizontal or Vertical orientated, ASME code manufactured, atmospheric to 2000 psig design pressure ratings. Applications include production separation, inlet/outlet scrubber separation, flare drum knockout.

Filter Separators

Filter-Separator

Horizontal or Vertical orientated, ASME code manufactured, atmospheric to 2000 psig design pressure ratings. Elements designed and installed to meet your individual well, compressor or conditioning requirements.

Horizontal Heated Separators

Horizontal-Heated-Separator

Vertical Gas x Horizontal Oil orientation, ASME code manufactured, atmospheric to 500 psig design pressure ratings. Designed to add required heat to well flow applications to aid in emulsion treating and separation, capture breakout gas back into gas stream and reduce paraffin fouling.

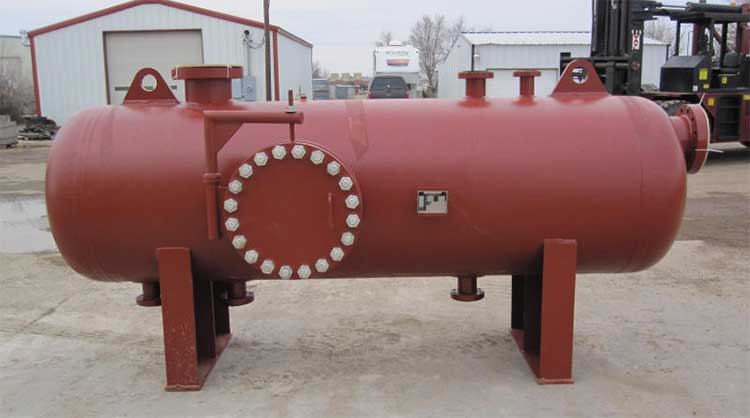

Sand Separators

sand-separator-trap

Vertical orientation, ASME code manufactured, atmospheric to 2000 psig design ratings. Designed for installation between well head and primary process equipment to knockout incoming sand from well stream in order to protect primary process equipment from sand wear and fouling.

Test Separators

Test-Separator

Horizontal or Vertical orientated, ASME code manufactured, atmospheric to 2000 psig design pressure ratings. Skid or trailer mounted units designed for movement throughout the field for well test and metering applications. Custom design and size to meet your fields flow and pressure requirements.
